Audio, Navigation, Anti-Theft, Airbag Control - Repair (G30)
>>
65 20 Antenna, Interference Suppression Filter
>>
65 20 350 Removing and installing/replacing interference suppression filter (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Removing the interference suppression filter
Removing the interference suppression filter

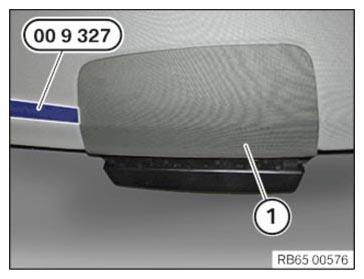

Unclip the cover (1) using special tool
0 496 571 (009 327)
and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
Disconnect plug connection (1).
Loosen screw (2).
Remove the interference suppression filter (3).
Courtesy of BMW OF NORTH AMERICA, INC.
