Installing the interference suppression filter

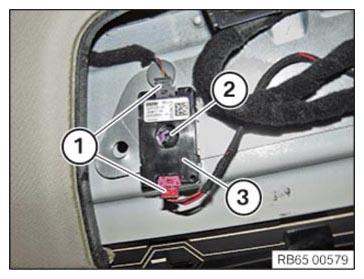

- Correctly position the interference suppression filter (3).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Interference suppression filter to body |
| Screw |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Connect connectors (1) and lock.

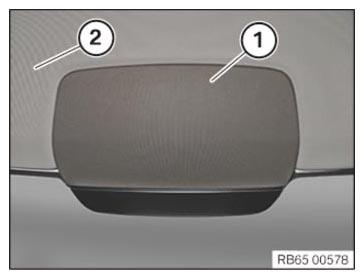

- Position the cover (1) correctly on the headliner (2) and clip it in.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
