65 24 Rear-Window Antenna, TV Amplifier, Band Elimination Circuit
>>
65 24 048 Removing and installing/replacing right wave trap for rear window heating (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the right wave trap for the rear window heating
Remove the right wave trap for the rear window heating
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary works
Remove c-pillar
TRIM PANEL
.

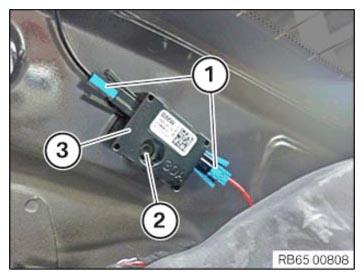

Unlock plug connection (1) and disconnect.
Unscrew the screw (2) and remove the wave trap (3).
Courtesy of BMW OF NORTH AMERICA, INC.
