Installing the seat-position sensor on the front seat

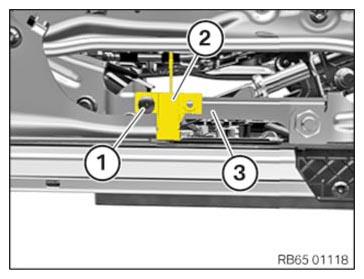

• Guide seat-position sensor (2) from above into seat mechanism (3) and position it properly.
• Fix rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

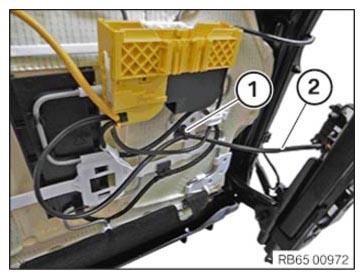

• Correctly position cable (2).
• Secure cable clip (1) to the seat mechanism.
• If necessary, attach additional cable clips.

  Courtesy of BMW OF NORTH AMERICA, INC.

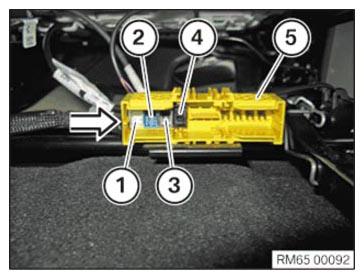

• Insert and lock the connectors correctly into the plug housing (5) in the sequence (1) to (4) in the direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

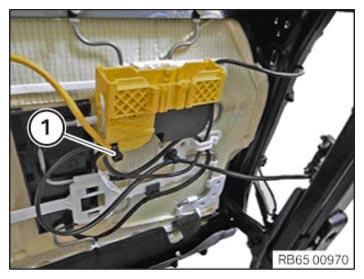

• Secure cable strap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install front SEAT .
