65 77 Airbag Control Units, Airbag Sensors
>>
65 77 585 Remove and install front seat position sensor (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>

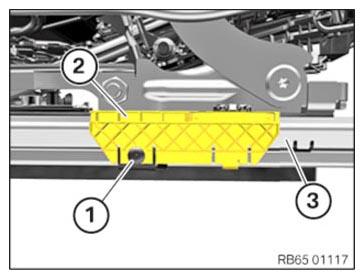

Installing the magnet for the seat-position sensor on the front seat
Installing the magnet for the seat-position sensor on the front seat
Feed the magnet (2) of the seat-position sensor into the seat mechanism (3) and position it correctly.
Fasten the rivet (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up Work
Install front
SEAT
.
