Replacing the right central exhaust valve
- Position special tool 2 249 117 (1) on the camshafts of cylinder bank 1.
- Secure camshafts with the special tool 2 249 117 (1).
- Bring the special tool 2 249 117 onto the contact surface with the cylinder head with 2 screws (2) of the cylinder head cover and hand-tighten.NOTE: RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.- Always turn the engine with the chain tensioner or the special tool.
- Release timing chain on the special tool 2 249 162 by turning the hexagon screw (2).
The special tool 2 249 162 (1) remains in the cylinder head.
- Loosen screw (1).
- Loosen screw (2).
- Remove slide rails of bank 1 (3).
- Release VANOS central valve (1).
The exhaust camshaft adjuster and the intake adjuster must not be removed from the camshafts.
- Remove the VANOS central valves (1).
- Replacement: Replace the VANOS central valves (1).
Parts: VANOS central valves
- Position VANOS central valves (1).
- Manually bring the VANOS central valves (1) onto the contact surface.
- Position slide rail of cylinder bank 1 (3).
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Flat-head screw to the slide rail Flat-head screw
M6x67Tightening torque 10 Nm - Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Collar screw to the slide rail Collar screw
M6x48Tightening torque 10 Nm - Make sure that the screws (1) have been hand-tightened.
- Pre-tension timing chain on special tool 2 249 162 at hexagon screw (2) with special tool 0 496 778 (00 9 460) to 0.6 Nm.
- Make straight marks on the VANOS central valves (1) and the VANOS adjusters (2) in the area of the hexagon head.
The angle must be 60°.
- Release the VANOS central valves (1) in the area of the hexagon head in an anti-clockwise direction until the upper mark of the VANOS central valves (1) matches the lower mark.
The rotational angle is 60°.
- Turn the engine counter-clockwise by 90° at central bolt.
The special tools 0 493 882 (11 9 190) (1) and 0 496 366 (11 8 570) (2) must not collide with other components.
- Remove the special tool 0 496 366 (11 8 570) (2).
- Position the special tool 0 493 882 (11 9 190) (1) in the recess on the engine block.
- Turn the engine on the central bolt clockwise until the special tool 0 493 882 (11 9 190) (1) lies against special tool 0 496 366 (11 8 570) (2).
- Tighten special tool 0 496 366 (11 8 570) (2) hand-tight to the vibration absorber with a screw of the belt pulley (3).
- Remove the special tool 0 493 882 (11 9 190) (1).NOTE: RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.- Always turn the engine with the chain tensioner or the special tool.
- Make sure that the screws (1) have been hand-tightened.
- Check preload of timing chain on special tool 2 249 162 at hexagon screw (2) with special tool 0 496 778 (00 9 460) to 0.6 Nm.TIGHTENING TORQUES SPECIFICATION
Preload timing chain Tightening torque 0.6 Nm - Tighten VANOS central valves (1).TIGHTENING TORQUES SPECIFICATION
VANOS central valve initial torque VANOS central valve Joining torque 5 Nm - Turn engine on the central bolt until the special tool is aligned with the struts on the engine block.
- Make sure that the special tool 0 496 366 (11 8 570) (3) is secured on the vibration absorber with a screw of the belt pulley (2).
- Slide the crankshaft in the installation position with the special tool 0 493 882 (11 9 190) (1) on the bars and fix it.
- Tighten VANOS central valves (1).TIGHTENING TORQUES SPECIFICATION

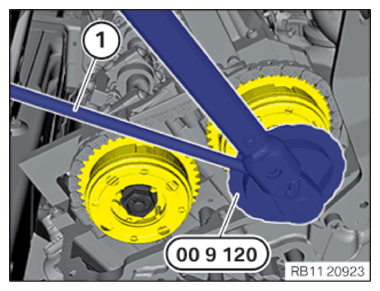

VANOS central valve second tightening VANOS central valve Joining torque 30 Nm Joining torque 50 Nm - Position the special tool 0 490 504 (00 9 120) (1) on the VANOS central valve of the intake side.
The magnetic foot of the special tool 0 490 504 (00 9 120) (1) must be attached to a magnetic component in the engine compartment.
The flexible element of the special tool 0 490 504 (00 9 120) (1) may not collide with other components.
- Set the display of angle of rotation on the special tool 0 490 504 (00 9 120) to zero (arrow).
- Tighten the VANOS central valve of the intake side until the needle on the special tool 0 490 504 (00 9 120) is at 30° (arrow).TIGHTENING TORQUES SPECIFICATION
VANOS central valve third tightening VANOS central valve Angle of rotation 30° - Position the special tool 0 490 504 (00 9 120) (1) on to the VANOS central valve of the exhaust side.
The magnetic foot of the special tool 0 490 504 (00 9 120) (1) must be attached to a magnetic component in the engine compartment.
The flexible element of the special tool 0 490 504 (00 9 120) (1) may not collide with other components.
- Set the angle-of-rotation gauge on the special tool 0 490 504 (00 9 120) to zero (arrow).
- Tighten the VANOS central valve of the intake side until the needle on the special tool 0 490 504 (00 9 120) is at 30° (arrow).TIGHTENING TORQUES SPECIFICATION
VANOS central valve third tightening VANOS central valve Angle of rotation 30° - Loosen screws (2).
- Remove the special tool 2 249 117 (1).
- Remove the special tool 0 493 882 (11 9 190) (1).
- Release the screw of the belt pulley (2).
- Remove the special tool 0 496 366 (11 8 570) (3).
- Check the camshaft positions of bank 1.

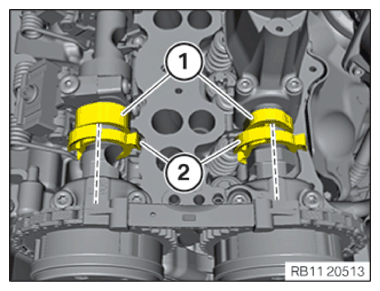

The cams (1) must be in the position shown.
The increment wheels (2) must form a line to the exhaust camshaft bearing cap and to the intake camshaft bearing cap.
NOTE: Description is for right component only. The procedure on the left side is identical.NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Make sure that the ground surfaces (2) of the camshafts point up.
- Make sure that the rounded surfaces (1) point downwards to the cylinder head.
- Check and evaluate the timing once again.
- Crank the engine on the central bolt twice in a clockwise direction until the installation position (MP) (1) of the vibration absorber aligns with the marks of the engine block.
- Position special tool 0 496 366 (11 8 570) (3) on the vibration absorber.
- Position special tool 0 493 882 (11 9 190) (1) in special tool 0 496 366 (11 8 570).
The special tool 0 493 882 (11 9 190) (1) must not be inserted very far as it may collide with other components while turning the crankshaft.
- Rotate the engine on the central bolt in direction of engine rotation until the special tool aligns with the engine block marks.
- Hand-tighten the special tool 0 496 366 (11 8 570) (3) with a screw (2) of the belt pulley on the vibration absorber.
- Slide the crankshaft in the installation position with the special tool 0 493 882 (11 9 190) (1) at the marks and fix it.
Check
- Position special tool 2 249 117 (1) on the camshafts of cylinder bank 1.
- Check whether the camshafts can be fixed with the special tool 2 249 117 (1).
- Check whether the special tool 2 249 117 can be brought onto the contact surface with the cylinder head with 2 screws (2) of the cylinder head cover.
Result
» The camshafts can be fastened.
Measure
- Valve timings are OK.
Loosen screws (2).
Remove the special tool 2 249 117 (1).
Continue the repair in the next step.
Result
» The camshafts cannot be fastened.
Measure
- Adjust the timings of cylinder bank 1.
- Remove special tool 0 493 882 (11 9 190) (1).
- Release the screw (2) of the belt pulley.
- Remove special tool 0 496 366 (11 8 570) (3).
- Loosen screws (2).
- Remove special tool 2 249 117 (1).
