Installing airbag sensor on the B-pillar

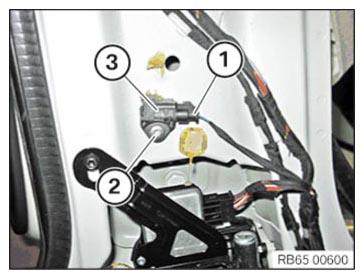

- Position the airbag sensor (3) correctly on the B-pillar.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Airbag sensor, B-pillar | ||
| M6 | Tightening torque | 8.8 Nm |
- Connect connector (1).
Follow-up Work
- Install the lower b-pillar TRIM PANEL .
- Install upper b-pillar TRIM PANEL .
- Install the rear door sill COVER STRIP .
- Install the front door sill COVER STRIP .
- Reconnect all battery EARTH LEADS
- Activate the 48 v ELECTRICAL SYSTEM .
