Engine - Variable Camshaft/Valve Controls - Repair (G30)
>>
11 36 Variable Camshaft Timing Control
>>
11 36 735 Removing and installing/replacing both actuators, right (With job no. 11 36 008) (M550i xDrive, 2018-2019)
>>
Removing the VANOS central valve
Removing the VANOS central valve

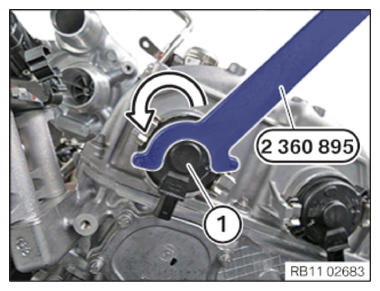

Release the VANOS central valve (1) with the special tool
2 360 895
in the direction of the arrow.
