Replace all connecting rod bearing shells

NOTE: RISK OF DAMAGE
Engine damage caused by incorrectly installed bearing shells and bearing brackets.
If the bearing shells and bearing brackets are installed incorrectly, then engine damage can occur.

Always install all bearing shells and bearing brackets in the same position from which they were removed.

NOTE: TECHNICAL INFORMATION
Piston, piston pin, connecting rod and connecting rod bearing shells are matched to each other and balanced.
Always install the pistons, piston pins, connecting rods and connecting rod bearing shells in the cylinder from which they were removed.

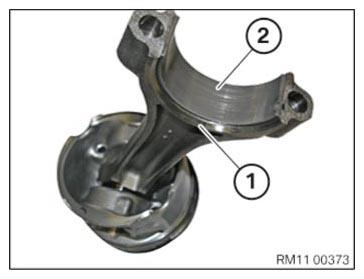

Feed the connecting rod bearing shell (2) out of the connecting rod (1) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

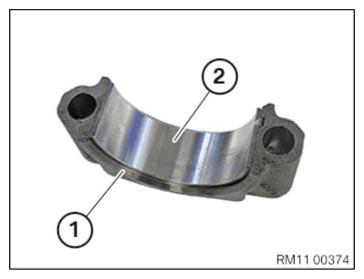

Feed the connecting rod bearing shell (2) out of the connecting rod bearing cap (1) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

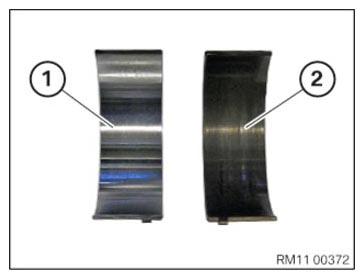

Note the different equipment specifications of the connecting rod bearing shells (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
To avoid incorrect assembly: Observe marks (arrows).

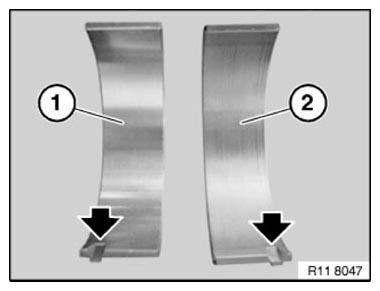

Connecting rod bearing shell (1) and the connecting rod bearing shell (2) each have a fuse to prevent incorrect assembly.

Courtesy of BMW OF NORTH AMERICA, INC.
To avoid incorrect assembly: Observe marks (arrows).

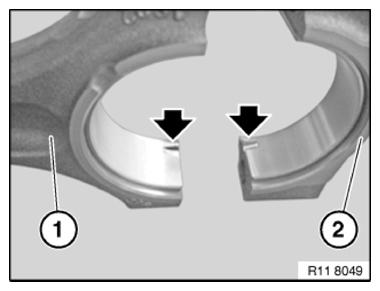

Connecting rod bearing cap (2) and the connecting rod (1) each have a fuse to prevent incorrect assembly.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the connecting rod bearing shell (2) and insert it in the connecting rod (1).
Parts: Connecting rod bearing shell
Oil the connecting rod bearing shell (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the connecting rod bearing shell (2) and insert in the connecting rod bearing cap (1).
Parts: Connecting rod bearing shell
Oil the connecting rod bearing shell (2).

Courtesy of BMW OF NORTH AMERICA, INC.

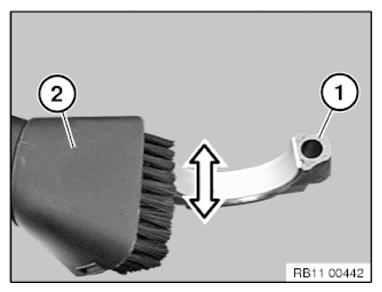

Vacuum the crack surfaces (1) with a conventional vacuum cleaner (2).
The crack surfaces (1) must not be blown off with compressed air.
