Engine - Vibration Damper/Connecting Rod/Pistons - Repair (G30)
>>
11 25 Piston With Rings And Bolts
>>
11 25 000 Removing and installing/replacing all pistons (M550i xDrive, 2018-2019)
>>
Removing the pistons at the cylinders 1 to 4 with the special tool
Removing the pistons at the cylinders 1 to 4 with the special tool

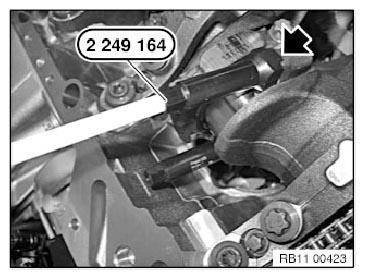

Screw the special tool
2 249 164
into the bore of the connecting rod.
Press out the connecting rod with piston with the special tool
2 249 164
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
