Removing the piston at cylinders 5 to 8 using special tool
NOTE:
TECHNICAL INFORMATION
For installation and dismantling of the connecting rods, it is essential for the crankshaft to be exactly in alignment with the cylinder bore.
For installation and dismantling of the connecting rods, it is essential for the crankshaft to be exactly in alignment with the cylinder bore.

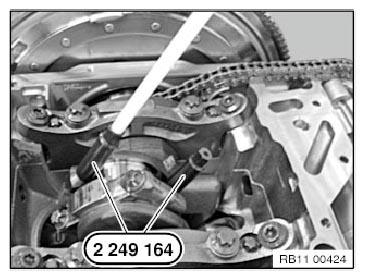

- Screw in special tools 2 249 164 into the bore of the connecting rod.
- Press out the connecting rod including piston using the special tool 2 249 164 .
