Engine - Vibration Damper/Connecting Rod/Pistons - Repair (G30)
>>
11 25 Piston With Rings And Bolts
>>
11 25 000 Removing and installing/replacing all pistons (M550i xDrive, 2018-2019)
>>

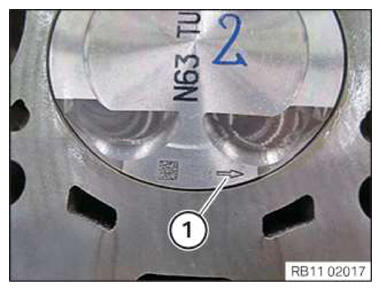

Mounting the pistons in the direction of the arrow
Mounting the pistons in the direction of the arrow
The direction arrow on the piston crown must point to the camshaft drive (direction of travel towards front).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
