Measuring a cylinder
Prerequisite
Cylinder barrel is cleaned.
Check
- Carry out a measurement at all cylinders.
- Adjusting measuring screw to nominal dimension of cylinder bore.
TECHNICAL DATA - CYLINDER BORE SPECIFICATION
| Cylinder bore B36/B38/B42/B46/B48/B58 | |
| Diameter of cylinder bore | 82.000 mm... 82.014 mm |
| Permitted irregularity of the cylinder bore | 0.01 mm |
| Permitted conicity of the cylinder bore | 0.01 mm |
| Permissible total wear tolerance between piston and cylinder bore (engine operated) | 0.15 mm |

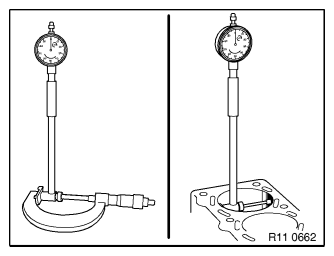

- Insert the internal measuring device into the micrometer and set it to zero.
- Measure the cylinder using the internal measuring device at the following points and check the deviations from the nominal dimension.
- Lower third of the cylinder bore in the direction of travel
- Lower third of the cylinder bore perpendicular to the direction of travel
- Center third of the cylinder bore in the direction of travel
- Center third of the cylinder bore perpendicular to the direction of travel
- Upper third of the cylinder bore in the direction of travel
- Upper third of the cylinder bore perpendicular to the direction of travel
Result
» Cylinder does not correspond to the specifications.
Measure
- Replace the crankcase.
Parts : Crankcase
