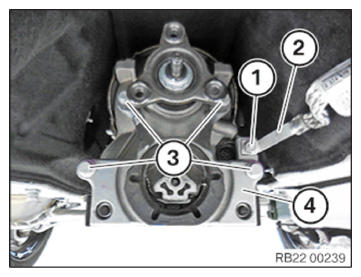

Install the transmission mounting bracket
- Install transmission mounting bracket (4).
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Transmission mounting bracket to transmission M10 Tightening torque 48 Nm - Install the ground strap (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Ground strap to transmission or body | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALL REAR UNDERBODY PROTECTION .
