0 494 416 (23 3 160) Tool

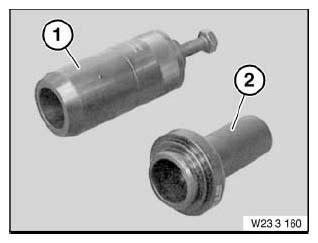

G04739298Courtesy of BMW OF NORTH AMERICA, INC.
Use (Tool set) For removing and installing the radial shaft seal of the output shaft. Transmission: GS6-37BZ/DZ (H transmission)
COMPRISING SPECIFICATION

No. BMW order number Replaced by Description In conjunction with
2 0 494 415 (23 3 162)   Mandrel
(Chuck) Cannot be ordered separately, only in set 23 3 160.
1 0 494 414 (23 3 161)   Puller
Cannot be ordered separately, only in set 23 3 160.
