2 210 778 Tool set
| Use | For positioning the support bearing on the spring strut of the front axle Installation aid that replaces (blocked) tool 31 0 000. |
COMPRISING SPECIFICATION

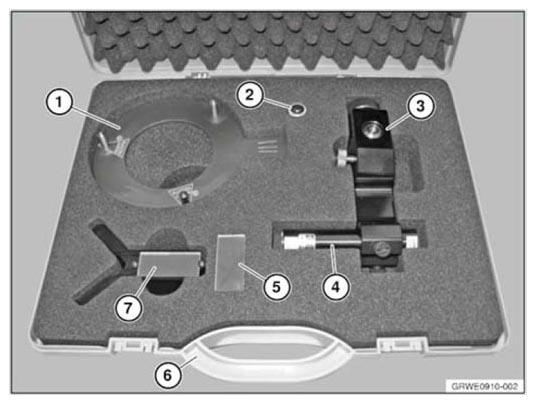

| No. | BMW order number | Replaced by | Description | In conjunction with |
|---|---|---|---|---|
| 1 | 2 210 783 | Gauge For positioning the support bearing. |
||
| 2 | 0 496 962 | Battery Commercially available battery 3V lithium (CR 123A) |
||
| 3 | 2 210 785 | Securing tool For attaching and aligning the laser on the spring strut. |
||
| 4 | 2 210 779 | Laser | ||
| 5 | 2 210 780 | Mirrors 1 set (2 units) replacement for prism 83 30 2 210 780 |
||
| 7 | 2 210 781 | Measurement aid Prism with mirror, for aligning the laser beam. |
