63 11 701 Replacing left LED flashing turn indicator (removed headlight) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Installing led module for turn indicator
Installing led module for turn indicator

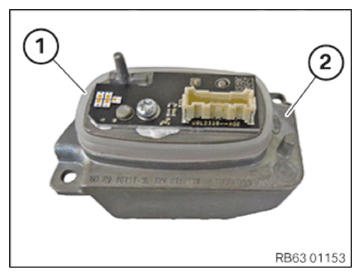

Check the seal (1) on the LED module (2) for damage and replace where required.
Courtesy of BMW OF NORTH AMERICA, INC.
Connect connector (1) to LED module (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Position the LED module (2) in the headlight.
Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
LED module turn indicator on headlight
40x14 screw
Tightening torque
1.5 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
