Install the Frontal Light Electronics

NOTE: RISK OF DAMAGE Electrostatic discharge. Damage to or destruction of electrical components.

Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)

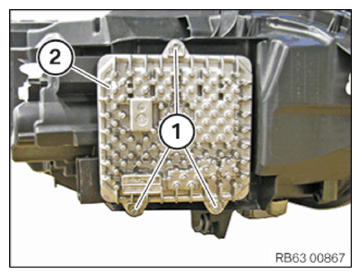

Loosen screws (1).
Pull Frontal Light Electronics (2) out of the headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

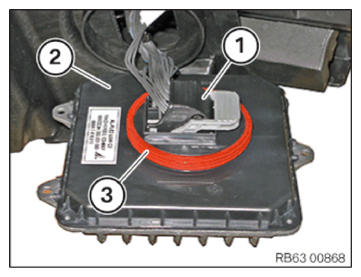

Unlock and disconnect connector (1).
Remove the Frontal Light Electronics (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work
