Headlight fogging fault pattern (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

NOTE: Certain weather conditions can lead to fogging on the inside of the headlight lens.

This is not necessarily a fault that requires replacement of the headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

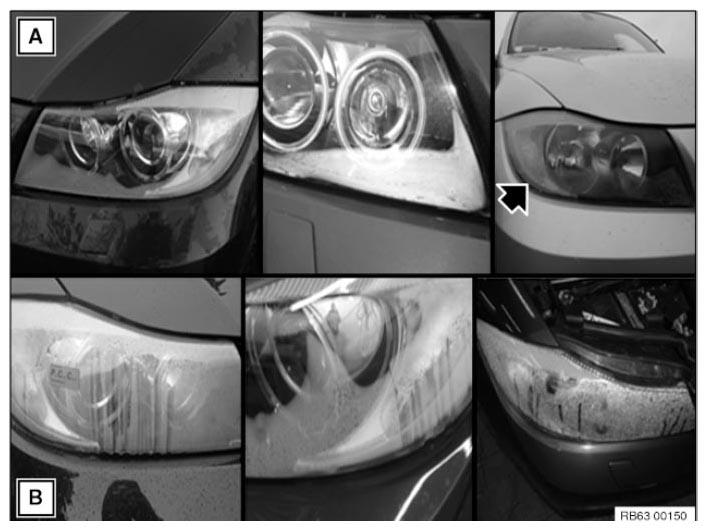

Top row (A): Permissible fogging. Headlight does not need to be replaced .

Bottom row (B): Impermissible fogging. Replace the headlight.
