US version: Remove the horizontal blocking before adjusting the headlamp (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

Required special tools:

• 23 0 490

Check:

Check the adjustment screw for horizontal adjustment for blocking (schematic diagram) For the precise location of the adjusting screws, if necessary, refer to the vehicle-specific service information for the headlamp setting)

Desired state:

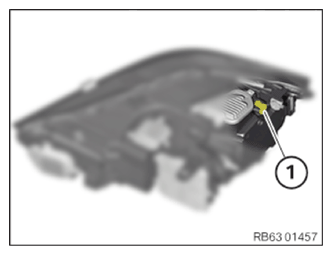

The adjustment screw for side adjustment must be blocked with a plug (1) (schematic diagram)

Courtesy of BMW OF NORTH AMERICA, INC.

Result:

Plug (1) is mounted in the horizontal adjustment screw (schematic diagram))

Courtesy of BMW OF NORTH AMERICA, INC.

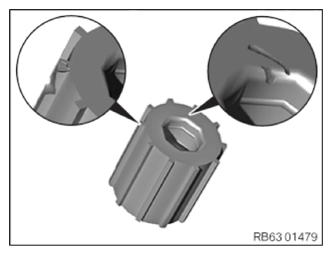

Plug (1) has damage/deformation on ribs/bore,  which suggest possible manipulation of the headlamp setting

Courtesy of BMW OF NORTH AMERICA, INC.

Measure:

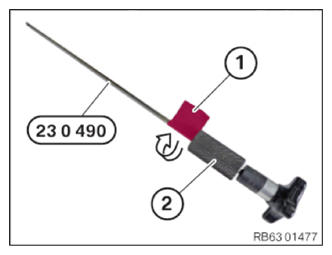

Remove blockage from horizontal adjustment screw In order to prevent damage to the vehicle, the impact weight (2) of the special tool 23 0 490 must be fixed close to the handle with adhesive tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.

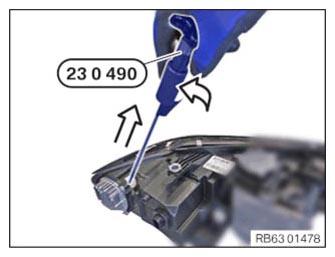

Screw special tools 23 0 490 into plugs and remove them from the adjusting screw by pulling (schematic diagram)

Courtesy of BMW OF NORTH AMERICA, INC.

Result:

Plug (1) is mounted in the horizontal adjustment screw and has no damage/deformation  suggesting possible manipulation of the headlamp setting (schematic diagram)

Measure:

No check or adjustment of the horizontal adjustment necessary
