US version: Setting the horizontal blocking when headlamp is set (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

Required special tools:

2 467 369

NOTE: Before installing the new headlamp, make sure that the headlamp adjustment screw for horizontal adjustment is secured against tampering with a plug.

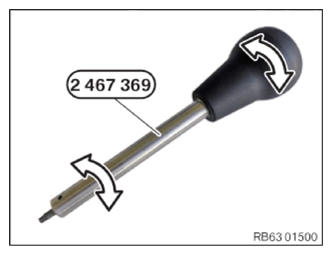

To ensure damage-free, torque-free installation of the horizontal blocking, special tool 2 467 369 has a freewheel (availability of special tool delayed in the short term until Q1 2019)

Courtesy of BMW OF NORTH AMERICA, INC.

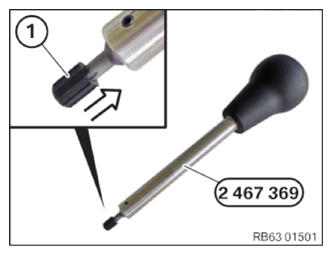

Carefully insert the plug (1) for blocking the horizontal adjustment onto the special tool 2 467 369, free of damage

Courtesy of BMW OF NORTH AMERICA, INC.

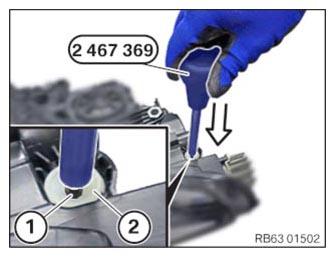

Press in the plug (1) with the special tool 2 467 369

damage-free into the adjustment screw for horizontal adjustment (2) (schematic diagram)

Courtesy of BMW OF NORTH AMERICA, INC.
