Remove right headlight
Preliminary works
- Remove the left and right top engine compartment COVER
.
- Remove front ornamental GRILLE
.
- Partially remove the front section of the front wheel arch COVER
- Remove front bumper PANEL
.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove headlight
- Protect the body in area (1) with adhesive tape.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Unlock and disconnect connector (1).
- Loosen screws (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Loosen screw (1).
- Remove holder (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

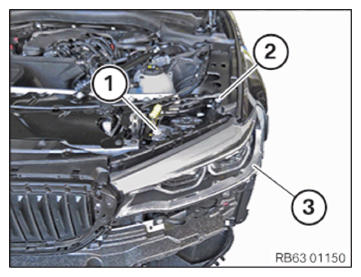

- Loosen screw (1).
- Loosen screw (2).
- Lift headlight (3) slightly, feed out to the front and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
