Removing both headlights

NOTE: TECHNICAL INFORMATION
Notes on headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 63 10... Test PREREQUISITE for adjusting headlights

Preliminary works

Remove the left and right top engine compartment COVER .
Remove front ornamental GRILLE .
Partially remove the front section of the front wheel arch COVER
Remove front bumper PANEL .

NOTE: Description is for left component only. Procedure on the right side is identical.

Remove headlight

Protect the body in area (1) with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

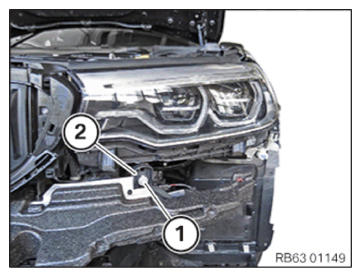

Unlock and disconnect connector (1).
Loosen screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Loosen screw (2).
Lift headlight (3) slightly, feed out to the front and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
