Installing both headlights

Install headlight

Checking blocking of the horizontal setting

• See ADDITIONAL INFORMATION .
• Feed in headlight (3) and position correctly.
• Tighten down screws (1) and (2).
  TIGHTENING TORQUES SPECIFICATION



  Front light combination, top
  Screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Front light combination, bottom
  Screw	Tightening torque	5 Nm

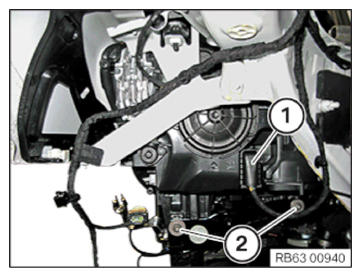

• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

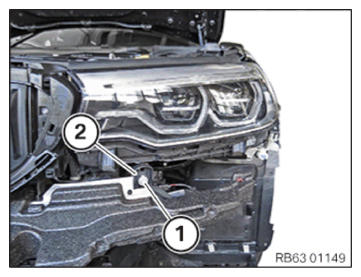

• Position holder (2).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Support to support
  Hexagon screw M6x20	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

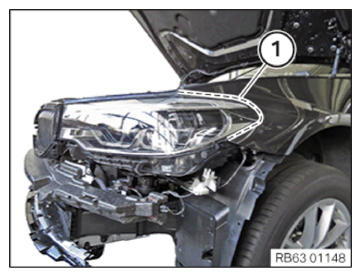

• Remove the adhesive tape in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install front bumper PANEL .
• Install (partially removed) front section of front wheel arch COVER
• Install front ornamental GRILLE .
• Install the left and right top engine compartment COVER
• Adjust HEADLIGHTS .
