Install the Frontal Light Electronics
NOTE:
RISK OF DAMAGE Electrostatic discharge. Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)
NOTE:
TECHNICAL INFORMATION
Notes on headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 63 10... Test PREREQUISITE for adjusting headlights
Notes on headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 63 10... Test PREREQUISITE for adjusting headlights

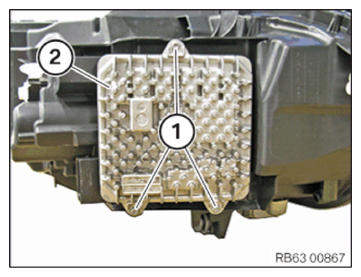

- Loosen screws (1).
- Pull Frontal Light Electronics (2) out of the headlight.

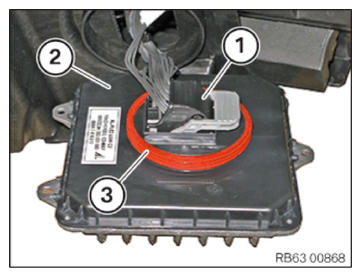

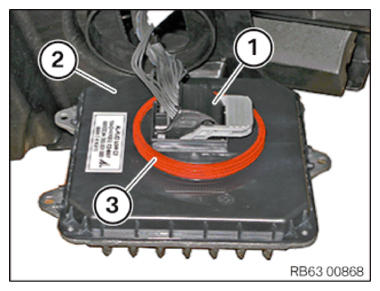

- Unlock and disconnect connector (1).
- Remove the Frontal Light Electronics (2).
Follow-up Work
- When replacing laser headlights: PROGRAMING/ENCODING the integrated laser control unit
- Adjust HEADLIGHTS .
