Install both rear reflectors

Check

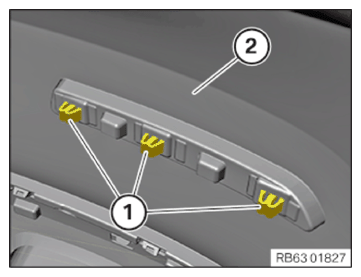

• Check the clamps (1) on rear reflector (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Clamps (1) are damaged.

  Measure

• Replace the rear reflector (2).
• Position the rear reflector in bumper panel (2) and engage at the retaining lugs (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install rear bumper PANEL .
• Install both REAR LIGHTS  on the side panel.
• Install left luggage compartment wheel arch TRIM PANEL .
• Install the right luggage compartment wheel arch TRIM PANEL
• Install loading EDGE TRIM .
• Install the luggage compartment floor TRIM PANEL .
