Removing the fog lights on the left (bumper panel installed)

Preliminary works

• Remove the front lower wheel arch COVER .
• Remove the brake AIR DUCT .

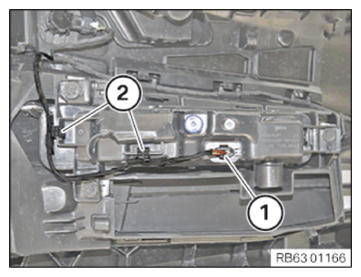

• Unlock plug connection (1) and disconnect.
• Unclip the cable clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

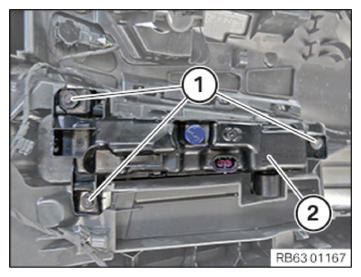

• Loosen screws (1).
• Remove the fog light (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
