Replacing rear light seal on the left side panel

Preliminary works

• Remove the luggage compartment floor TRIM PANEL .
• Remove the loading EDGE TRIM .
• Partially remove the left luggage compartment wheel arch TRIM PANEL .
• Remove the side panel REAR LIGHT .

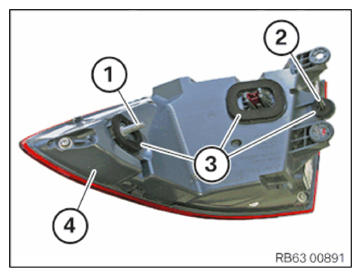

• Remove the gaskets (3)  .
• Clean bonding surfaces.
• Bond new gaskets.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the side panel REAR LIGHT .
• Install left luggage compartment wheel arch TRIM PANEL .
• Install loading EDGE TRIM .
• Install the luggage compartment floor TRIM PANEL .
