Install the rear light on the side panel

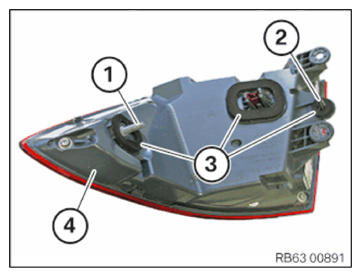

- Check the threaded bolt (1) and the guide (2) on the rear light (4) for damage and replace it if necessary.
- Replace gaskets (3).
Parts: Seals

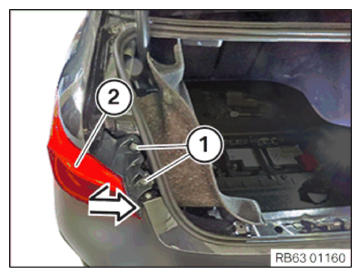

- Position the rear light (2).
- Replace nuts (1).
Parts: Nut
- Tighten the nuts (1) on the rear light (2).TIGHTENING TORQUES SPECIFICATION
Rear light to side panel Nut M6 Replace nuts. Tightening torque 2.6 Nm - Connect connectors (1) and lock.
- Replace nut (2).
Parts: Nut
- Tighten nut (2).TIGHTENING TORQUES SPECIFICATION

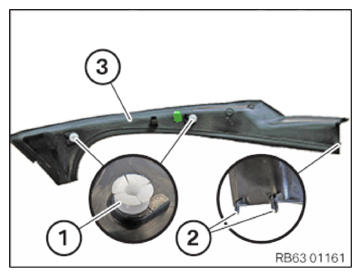

Rear light to side panel Nut M6 Replace nuts. Tightening torque 2.6 Nm - Check the clips (1) and guides (2)
on the water drain (3) for damage and replace as needed.
- Clip in the water drain (1).

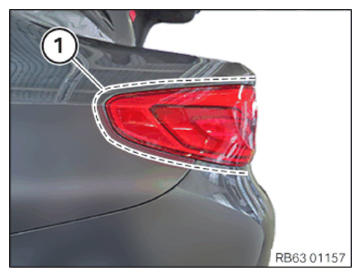

- Remove the adhesive tape in area (1).
Follow-up Work
- Install left luggage compartment wheel arch TRIM PANEL .
- Install loading EDGE TRIM .
- Install the luggage compartment floor TRIM PANEL .
