Installing the rear light on the tailgate on the left

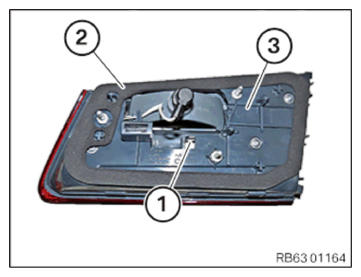

• Check the retaining lug (1) at the rear light (3) for damage and replace if necessary.
• Replace the gasket (2). Parts: Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the rear light in the tailgate such that the latch mechanism (3) engages.
• Tighten nuts (2).
  TIGHTENING TORQUES SPECIFICATION



  Rear light at tailgate
  nut M6	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

Follow-up Work

• Install rear light TRIM
• Install the tailgate TRIM PANEL .
• Install the tailgate LIFT SWITCH .
