Remove both rear lights from the side panel
Preliminary works
- Remove the luggage compartment floor TRIM PANEL .
- Remove the loading EDGE TRIM .
- Partially remove the left luggage compartment wheel arch TRIM PANEL .
- Partially remove the right luggage compartment wheel arch TRIM PANEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the rear light on the side panel

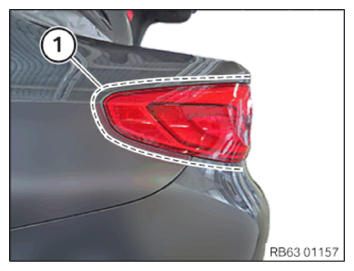

- Protect the body in area (1) with adhesive tape.

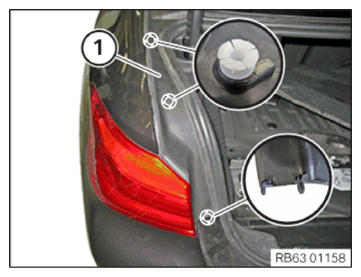

- Unclip the water guide (1) with the special tool 0496 569 (009325)
.

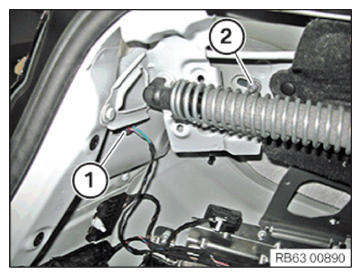

- Unlock and disconnect connector (1).
- Loosen the nut (2)
on the inside of the luggage compartment.

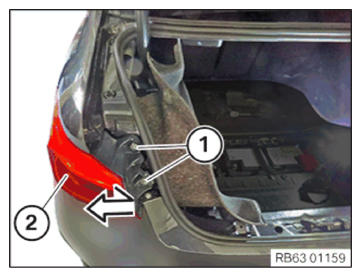

- Loosen the nuts (1) on the rear light (2).
- Remove the rear light (2)
in the direction of the arrow.
