11 41 Oil Pumps With Strainer And Drive
>>
11 41 000 Removing and installing/replacing oil pump (M550i xDrive, 2018-2019)
>>
Measure the timing chain of the oil pump (1)
Measure the timing chain of the oil pump (1)

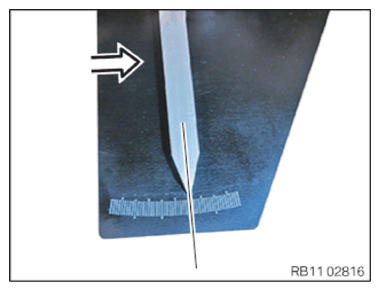

Press the trailing pointer of the special tool
2 413 036
on the timing chain of the oil pump in the direction of the arrow to the stop.
Record the determined value.
Courtesy of BMW OF NORTH AMERICA, INC.
