Replace both rear lights on the side panel

Replacing the rear light at the side panel

• Position the rear light (1).

  Part:  Rear light

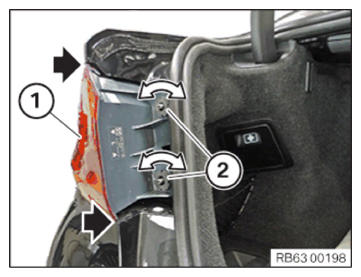

• Use the spacer bushes (2) to adjust the fit (arrows) of the rear light (1) in relation to the side panel and to the bumper.

  Courtesy of BMW OF NORTH AMERICA, INC.

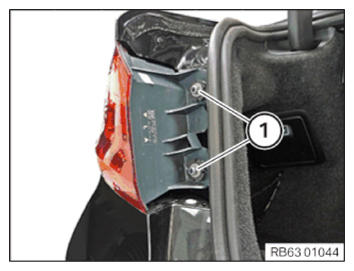

• Tighten the nuts (1) on the rear light.
  TIGHTENING TORQUES SPECIFICATION



  Rear light to side panel
  Nut M6 Replace nuts.	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector
• Tighten nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Rear light to side panel
  Nut M6 Replace nuts.	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the clips (1) and guides (2) on the water drain (3) for damage and replace as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the water drain

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the adhesive tape in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install left luggage compartment wheel arch TRIM PANEL .
• Install loading EDGE TRIM .
• Install the luggage compartment floor TRIM PANEL .
