Replacing the valve stem seals

Remove valve stem seals

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

NOTE: The description is for one component only. The procedure is identical for all further components.

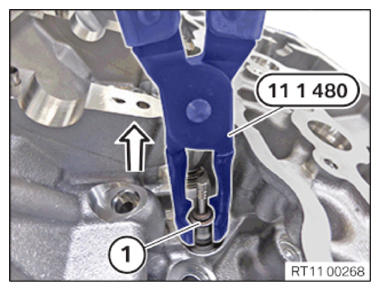

Remove the valve stem seal (1) in the arrow direction using the special tool 0 490 796 (11 1 480) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing valve stem seals

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

NOTE: The description is for one component only. The procedure is identical for all further components.

Remove oil and dirt from the contact surface (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION

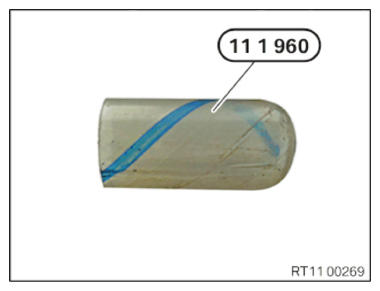

As an alternative to special tool 0 490 797 (11 1 960) , the assembly sleeves delivered with the spare part can be used (see applicable BMW parts catalogue).
Make sure that the special tool 0 490 797 (11 1 960) or the assembly sleeves are used when installing the valve stem seal.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install special tool 0 490 797 (11 1 960) or assembly sleeves on valve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the valve stem seal (1) or assembly sleeves.
Parts: Valve stem seal, assembly sleeves
Guide in and install valve stem seal (1) on special tool 0 490 797 (11 1 960) or assembly sleeves.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide out and remove special tool 0 490 797 (11 1 960) or assembly sleeves.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare special tool 0 493 249 (11 6 380) .

Courtesy of BMW OF NORTH AMERICA, INC.

Press the valve stem seal (1) onto the cylinder head 0 493 249 (11 6 380) up to the stop using special tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the valve stem seal (1) is correctly positioned on the cylinder head (2).

Courtesy of BMW OF NORTH AMERICA, INC.
