63 25 004 Replacing the additional brake light (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install the auxiliary stop lamp
Install the auxiliary stop lamp

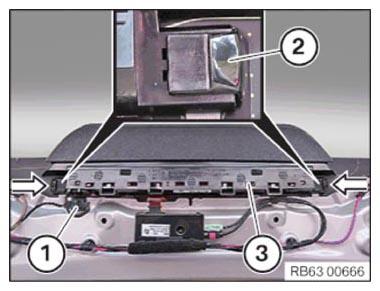

Insert additional brake light (3).
Lock the slide in direction of arrow (2).
Connect connector (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up Work
Insert additional brake light
TRIM
