Install interior roof light

Check

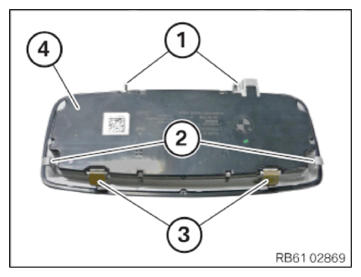

• Check guides (1), clamps (3) and latch mechanisms (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Guides (1), clamps (3) or latch mechanisms (2) are damaged.

  Measure

• Replace the interior roof light (4).

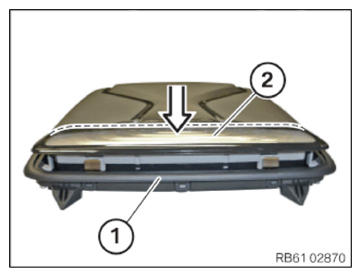

• Insert the interior roof light (2) in the marked area.
• Engage interior roof light (2) in the frame (1) in direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install roof FUNCTION CENTER (FZD).
