Removing the LED modules for the front door trim panel

Preliminary works

• Remove the mirror triangle COVER .
• Remove the door handle COVER .
• Remove front door TRIM PANEL .

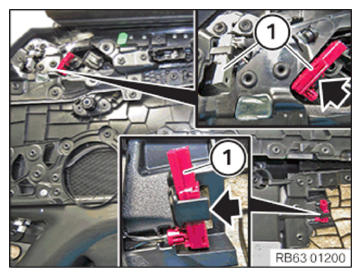

• Release the latch mechanisms (arrows) and pull LED modules (1) from the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

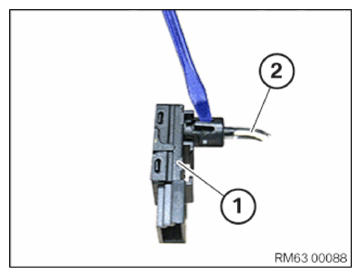

• Release the latch mechanism with a screwdriver (3-mm blade).
• Unclip the LED modules (1) from the fibre-optic conductor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
