Installing the VANOS central valve of the intake adjuster

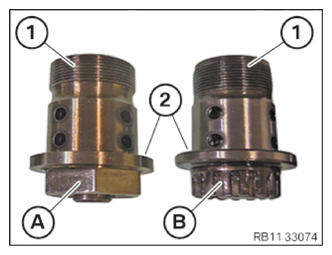

Equipment specification A with the thread M22:
Coat the VANOS central valve (A) on the thread (1) with fresh engine oil.
Coat the VANOS central valve (A) on the contact surface (2) with fresh engine oil.
Equipment specification B with the thread M21:
Coat the VANOS central valve (B) on the thread (1) with fresh engine oil.
Coat the VANOS central valve (B) on the contact surface (2) with fresh engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

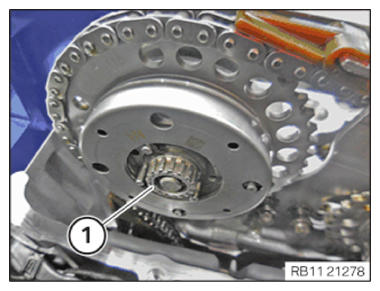

Guide in and install the VANOS central valve (1) of the intake adjuster.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the VANOS central valve (1) of the intake adjuster hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

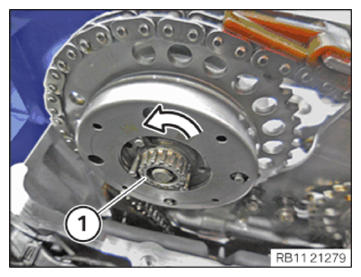

Release the VANOS central valve (1) of the intake adjuster 60° in the direction of the arrow .

Courtesy of BMW OF NORTH AMERICA, INC.
