Removing LED module on ventilation grille on left

Preliminary works

• Remove the left instrument panel SIDE PANEL .
• Remove the left finisher on the INSTRUMENT PANEL .

• Loosen the LED module (1) from the bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

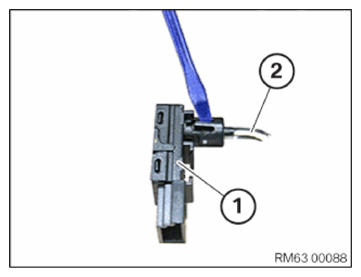

• Release the latch mechanism of the fiber-optic conductor (2) with screwdriver (with a 3 mm blade).
• Unclip the LED module (1) from the fiber-optic conductor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
