Engine - Variable Camshaft Controls - Repair (G30) (4 Of 6)
>>
11 36 Variable Camshaft Timing Control
>>
11 36 126 Remove and install/replace the exhaust VANOS central valve (if necessary on the right) (530e PHEV, 2018-2020, 530e xDrive PHEV, 2018-2020)
>>
Preload timing chain
Preload timing chain
Install a new chain tensioner
Replace sealing ring (1).
Parts:
Sealing ring
Courtesy of BMW OF NORTH AMERICA, INC.

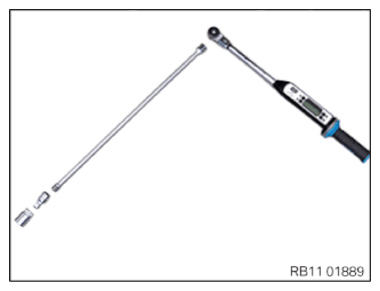

Tighten chain tensioner using the illustrated tool.
Courtesy of BMW OF NORTH AMERICA, INC.

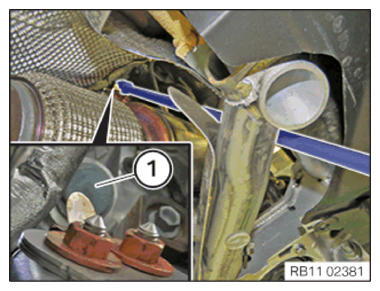

Tighten chain tensioner (1) from below.
TIGHTENING TORQUES SPECIFICATION
Chain tensioner to cylinder head
Chain tensioner piston M22x1.5
Joining torque
20 Nm
Angle of rotation
30°
Courtesy of BMW OF NORTH AMERICA, INC.
