Engine - Variable Camshaft/Valve Controls - Repair (G30)
>>
11 36 Variable Camshaft Timing Control
>>
11 36 735 Removing and installing/replacing both actuators, right (With job no. 11 36 008) (M550i xDrive, 2018-2019)
>>
Releasing plug connection on VANOS central valve intake side cylinders 1 to 4
Releasing plug connection on VANOS central valve intake side cylinders 1 to 4

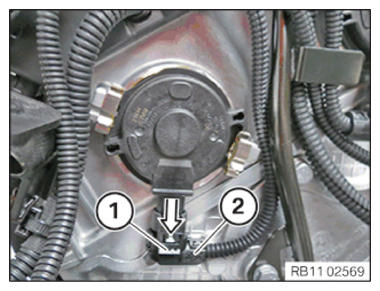

Pull the connector (1) in the direction of the arrow.
Disconnect the plug connection (2) on the VANOS central valve in the direction of the arrow.
