Remove the external fuel filter
Preliminary work
- Refer to REMOVE SIDE UNDERBODY PLANKING .
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

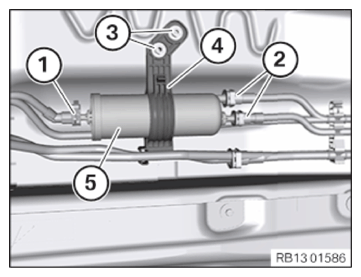

- Unlock and release fuel line (1).
- Unlock and loosen fuel lines (2).
- Loosen nut (3).
- Unlock the lock on the holder (4).
- Guide out and remove holder (4).
- Guide out and remove fuel filter (5).
