Installing the post amplifier

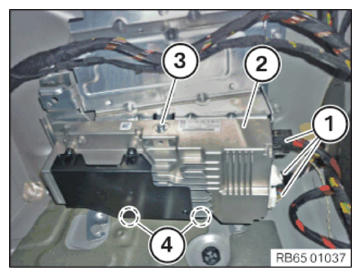

- Insert the post amplifier (2) in the guides (4) from the top and position correctly.
- Tighten down screw (3).
TIGHTENING TORQUES SPECIFICATION
| Amplifier/RAM on holder | ||
| M5 screw | Tightening torque | 3 Nm |
| Nut | Tightening torque | 3 Nm |
- Connect and lock the connector (1) at the post amplifier (2).
Follow-up Work
- Install storage COMPARTMENT .
- Install left luggage compartment wheel arch TRIM PANEL .
- Install loading EDGE TRIM .
- Connect all battery EARTH LEADS .
- Activate the 48 v ELECTRICAL SYSTEM .
