Installing the throttle body

• Replace the sealing ring (1) with the special tool 0 496 714 (00 9 030)  .

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

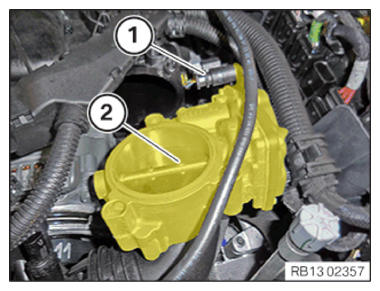

• Position throttle body (2).
• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

• Install the throttle body (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

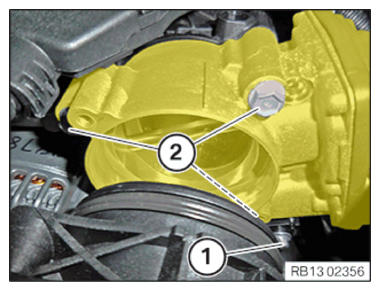

• Tighten screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Throttle body to intake plenum
  6X50	Tightening torque	7 Nm

• Replace the screw (1).

  Parts:  screw

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Holder for coolant hose to throttle body
  M6x16 screw Replace screw.	Tightening torque	11.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE CHARGE AIR LINE .
• Refer to INSTALLING ACOUSTIC COVER .
