Install charge air temperature sensor
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

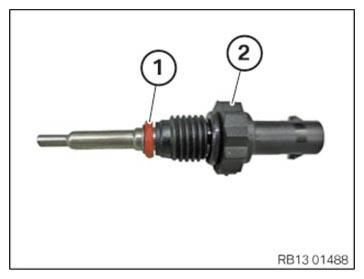

- Replace the sealing ring (1) on the charge-air temperature sensor (2).
Parts : Sealing ring
- Insert and install the charge air temperature sensor. (4).
- Tighten charge air temperature sensor (4).TIGHTENING TORQUES SPECIFICATION
Charge air temperature sensor on charge air line Sensor Tightening torque 1.8 Nm - Connect and lock the connector (3).
The connector (3) must engage audibly.
- Insert and install the wiring harness (2).
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Wiring harness to intake plenum Tightening torque 4 Nm
Follow-up work
- Refer to INSTALL ACOUSTIC COVER .
