Installing the cylinder head cover pressure sensor

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to REMOVING THE CONTROL UNIT BRACKET FOR CYLINDERS 1 TO 4 .

• Check the O-ring (1) for damage and replace it if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

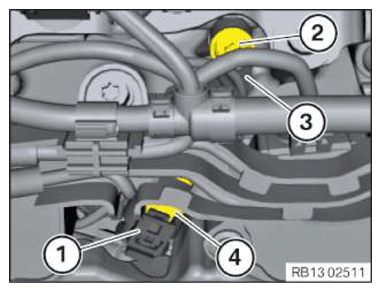

• Insert and install the pressure sensor (4) at the cylinder head cover.
• Position the plate (3).
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Pressure sensor on cylinder head cover
  Screw TS6x12	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug connection (1) and lock.
