Installing left hot film air mass meter

• Install the hot film air mass meter (3).
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Hot film air-mass meter to intake filter housing
  TS4X16	Tightening torque	1.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

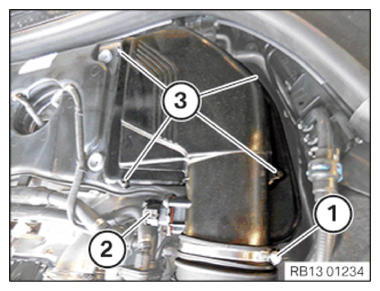

• Install the upper section of intake filter housing, left.
• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Intake filter housing upper section to intake filter housing lower section
  Self-tapping bolt	Tightening torque	3.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten clamp (1).
  TIGHTENING TORQUES SPECIFICATION



  Clean air pipe to upper section of intake filter housing
  cl.	Tightening torque	3 Nm

• Plug the connector (2) into the hot film air mass meter and lock it.

Follow-up work

• Refer to INSTALL ACOUSTIC COVER .
• Refer to FOR REPLACEMENT: RESET ADAPTATION VALUES .
