Install charge air line

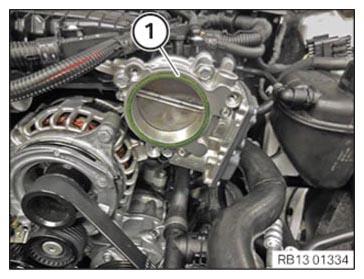

• Replace gasket (1).

  Parts  : Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install charge air line (5).
• Tighten down screws (4).
  TIGHTENING TORQUES SPECIFICATION



  Charge air line to throttle valve
  M6x30	Tightening torque	8 Nm

• Connect and lock the connector (3).
• Connect and lock the connector (2).
• Connect and lock the connector (1).

  All connectors must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect charge air line (1) and lock.

  The charge air line (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL BOTTOM CLEAN AIR PIPE .
• Refer to INSTALL CLEAN AIR PIPE, TOP .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALL ACOUSTIC COVER .
