Replacing the clean air pipe of cylinder bank 2

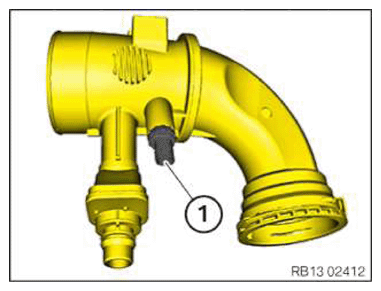

- Release the temperature sensor (1) with the special tool 0 496 142 (11 8 850)
.
- Tighten the temperature sensor (1) with the special tool 0 496 142 (11 8 850)
.
TIGHTENING TORQUES SPECIFICATION
| Temperature sensor |
M 12x1.5
temperature sensor |
Tightening torque |
1.8 Nm |
