Remove the clean air pipe of cylinder bank 1

Preliminary work

• Refer to REMOVE THE TOP RIGHT COVER IN THE ENGINE COMPARTMENT .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to REMOVING RIGHT INTAKE FILTER HOUSING WITH RIGHT FRONT-END STRUT .
• Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .

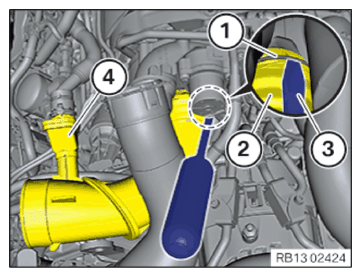

• Using suitable screwdrivers (3), lever the retaining clips (1) upwards and unclip from the surrounding guides (2).

  Due to the design, locking the retaining clip (2) in place in the release position is not possible.

• Remove clean air pipe of bank 1 (4).
